TopoSuite for Android

1.4.0-beta.4 GPL-2.0-only

Tool for land surveyors

Download APK (4 MB)

Update
Developer
HGdev
License
GPL-2.0-only
Source Code
Code Repository

TopoSuite app

TopoSuite is Science & Education application that is open source under the GPL-2.0-only license. TopoSuite for Android is an application that targets land surveyors by helping
them determining new geographical points based on measurements and offering some
utilities. It is able to do the following calculations:

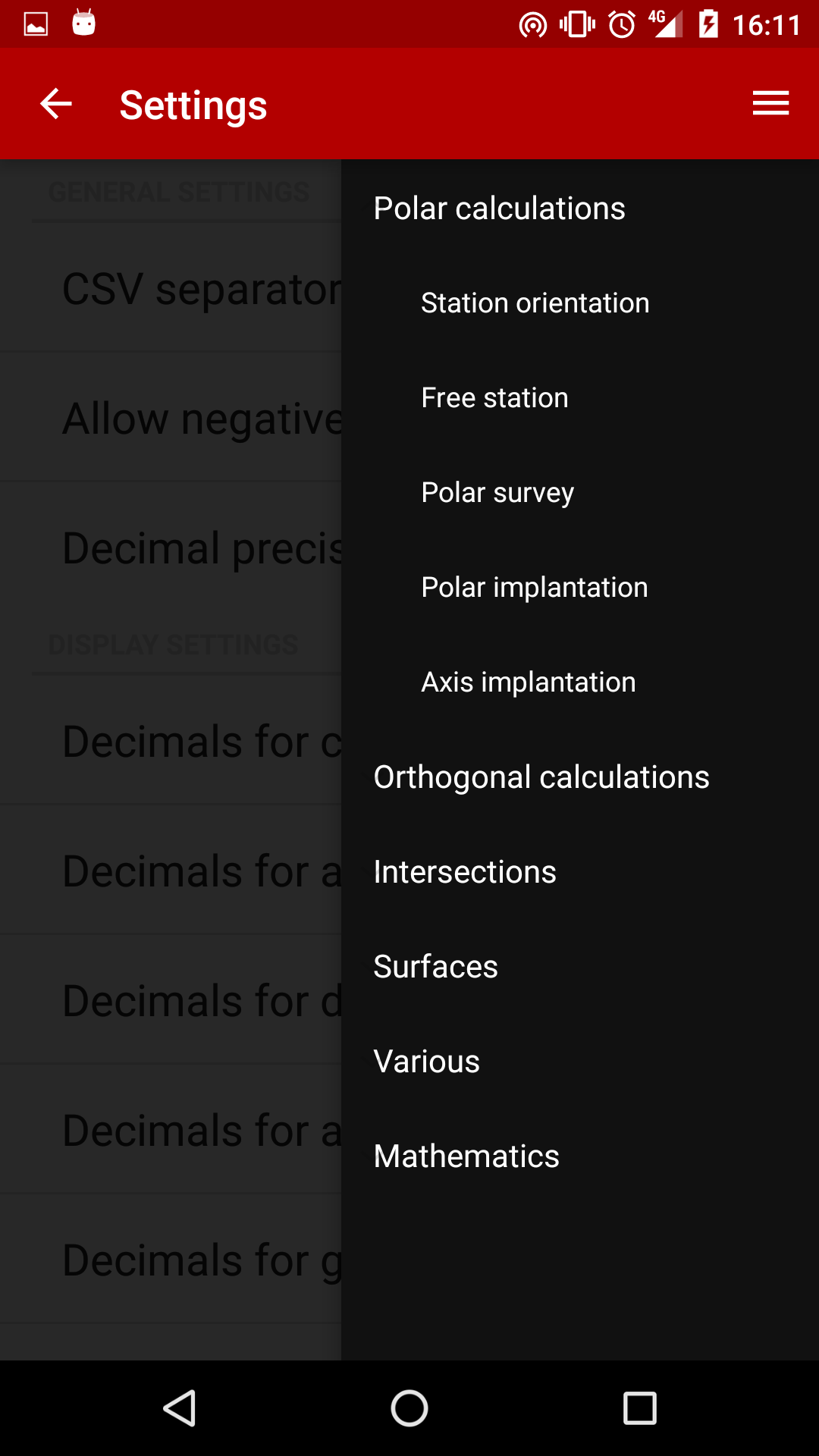

Polar calculations:

* station orientation

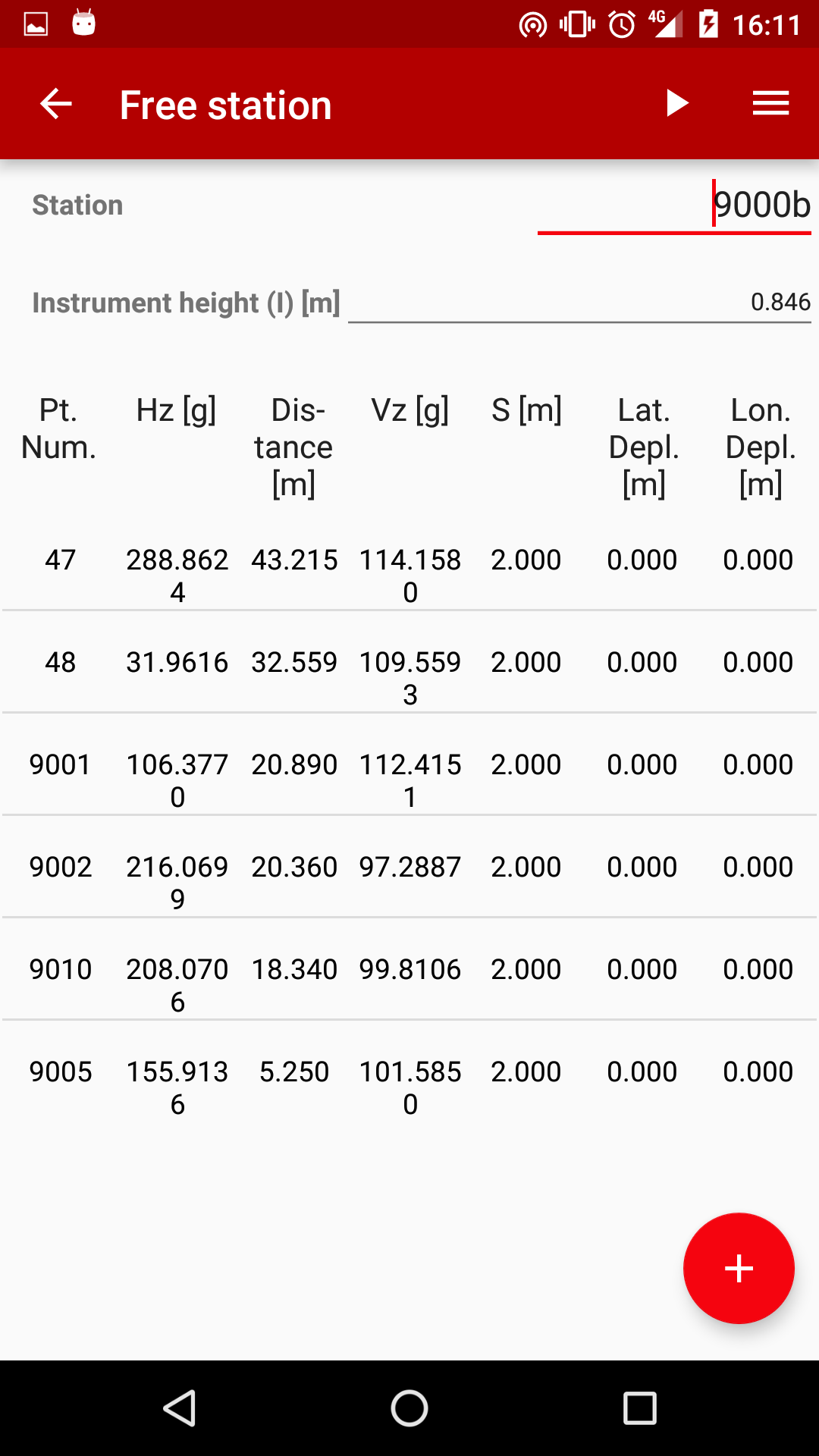

* free station
* polar survey
* polar implantation
* axis implantation

Orthogonal calculations:

* orthogonal survey
* orthogonal tracking
* orthogonal implantation

Intersections calculations:

* lines intersections
* circles intersections
* line / circle intersections

Surface calculations:

* surface included with arc of a circle
* parallel limit displacement regarding compulsory surface

Miscellaneous:

* field / distance
* point projection on a line
* circle computation using three points
* arc of a circle segmentation

Mathematics:

* triangle solver
* circular elements resolution

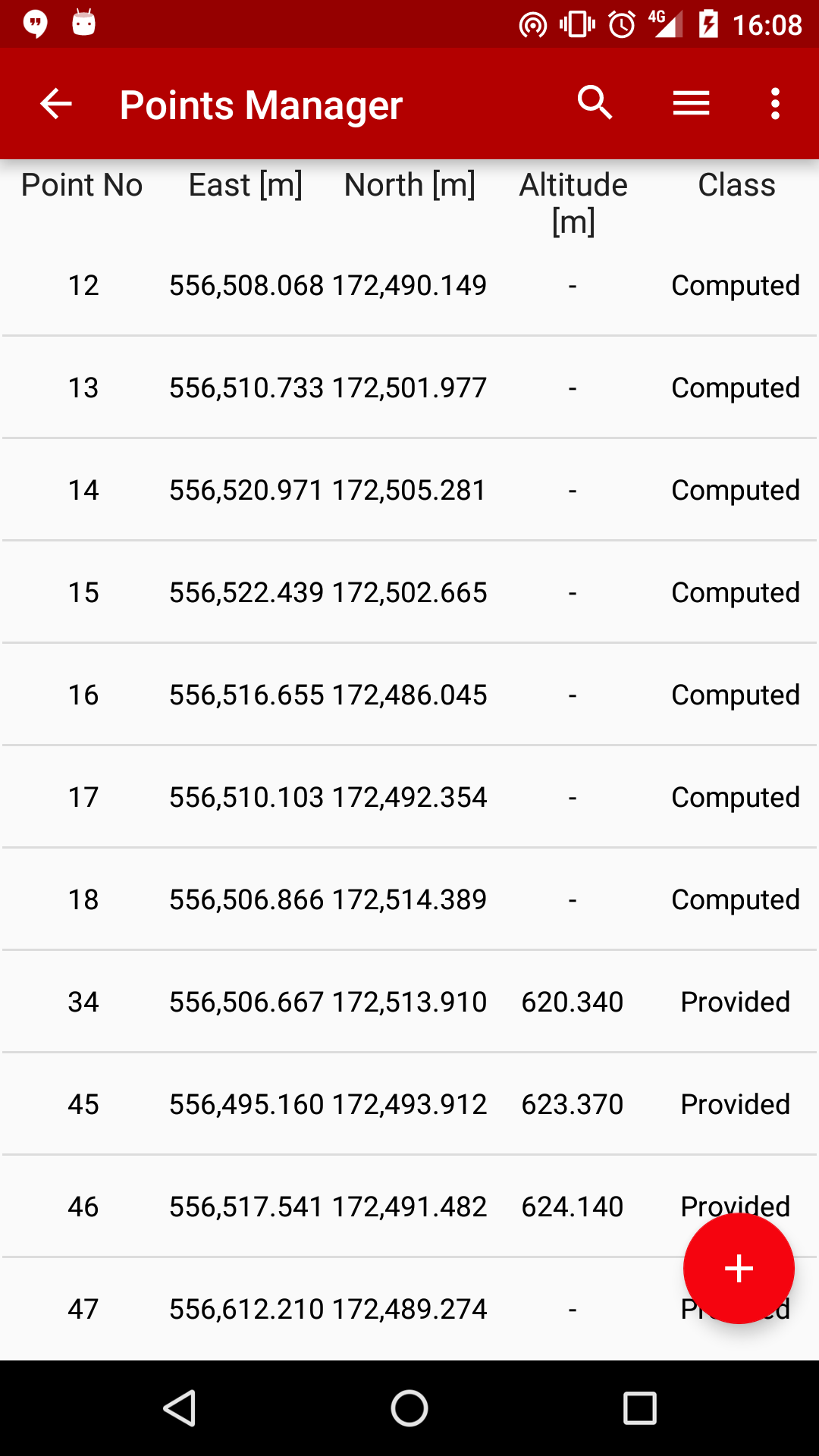

Data, such as points, can be imported into the application from CSV, LTOP or PTP
file formats and exported to CSV. The history of all the calculations, the
points and application settings can be exported to file (*.tpst) which can be
imported into other instances of the application or simply later on.
